Description

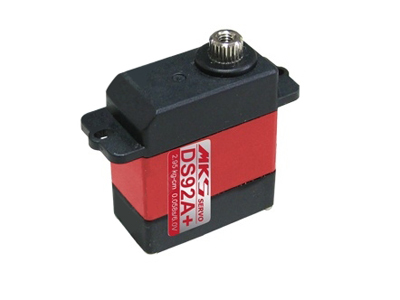

Low voltage, digital cyclic servo.
| SKU | MKS-DS92A+ | |
| Dead Band | 0.001ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequency | 1500μs / 333hz data: 850μs~2150μs | |
| (RX) Required Pulse | 3.0~5.0 Volt Peak to Peak Square Wave | |
| Operating Voltage | 4.8~6.0 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (4.8V) | 0.070 sec/60° degrees at no load | |
| Operating Speed (6V) | 0.058 sec/60° degrees at no load | |
| Stall Torque (4.8V) | 2.40 kg-cm (33.33 oz/in)(4.8V) | |
| Stall Torque (6V) | 2.95 kg-cm (40.97 oz/in) (6.0V) | |
| Motor Type | Coreless Motor | |
| Potentiometer Drive | Direct Drive | |
| Driver Type | FET | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Chrome-Titanium alloy gear | |
| Programmable | NO | |
| Connector Wire Length | 20.0 cm (7.86 in) | |
| Dimensions | 23mm x 12mm x 27.25mm | |
| Weight | 17.43 g (0.61 oz) | |
