Search Results for: soko

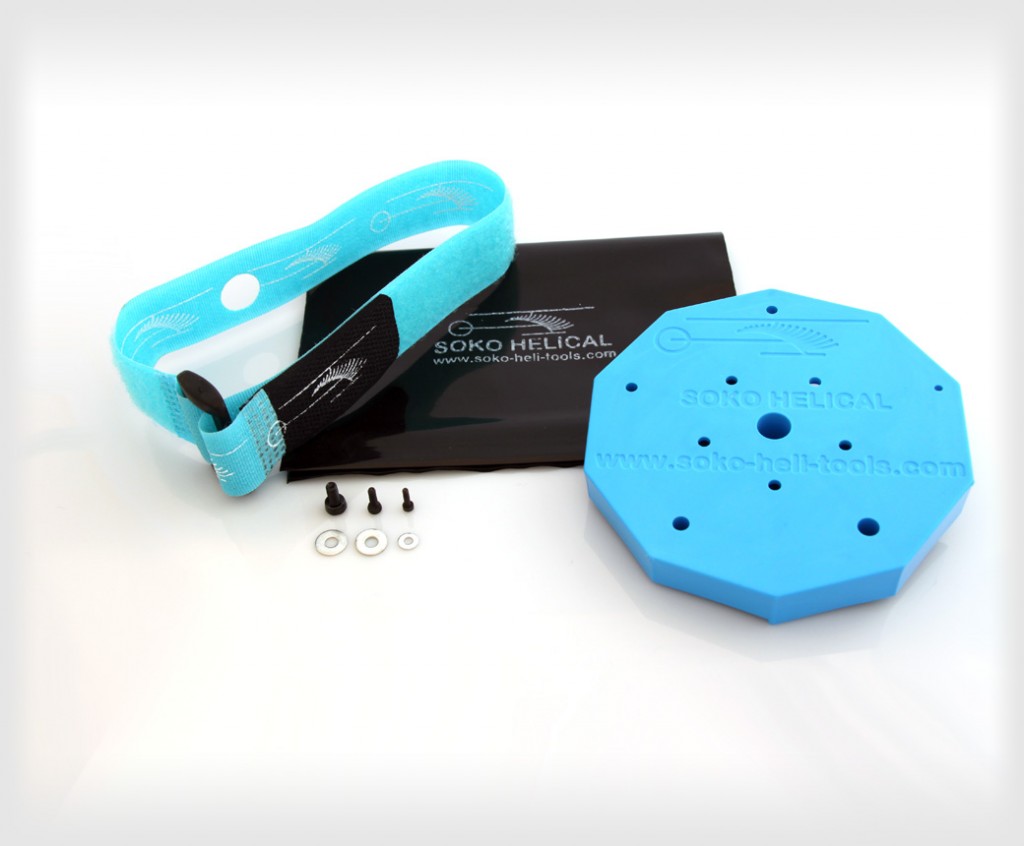

Soko Helical

October 8, 2014 by Leave a Comment

The Soko Helical is an extremely versatile mounting platform for gauges & tools when setting up RC helicopters.

The Soko Helical is ideal for anyone who already owns a gauge or needs to mount other tools.

Shipping includes:

1x Soko Helical
1x M1.6x6mm hex screw
1x M2x6mm hex screw
1x M3x6mm hex screw
1x M2 washer
2x M3 washer
1x Special mounting velcro
1x storage bag

 Details about the Soko Helical:

The Soko Helical can be mounted on any RC heli in a blade grip (main and tail) with the following dimensions:

• blade grip opening 3mm, screw M2 (equals main blade grips for standard 250 size)
• blade grip opening 4.5mm, screw M3 (equals main blade grips for standard 450 size)
• blade grip opening 10mm, screw M3 (equals main blade grips for standard 500 size)
• blade grip opening 12mm, screw M4 (equals main blade grips for standard 550/600 size)
• blade grip opening 14mm, screw M5 (equals main blade grips for standard 700 size)

 The Soko Helical is designed to be mounted as a head stopper disc:

• for a M1.6 head stopper screw (standard 250 size)
• for a M2 head stopper screw (standard 450/500 size)
• for a M3 head stopper screw (standard 550/600/700 size)

To mount any  gauge or tools, mounting velcro is included. Additionally, the Soko Helical provides special holes to securely mount the Soko Gauge.

Soko Helical

Soko Helical

SoKo Kit – Digital Helicopter setup tool

September 29, 2014 by Leave a Comment

The Soko Kit is the tool for a precise, easy and fast setup of

  • swash plate level (at all pitch angles)
  • collective and cyclic pitch angle
  • servo mid and end points
  • fine tuning of linkage length
  • centre of gravity
  • absolute horizontal (spirit) level of helicopter
  • pitch angle of the tail blades

All this comes

  • for all helicopter sizes
  • for all helicopter brands
  • with a resolution of 0.1 degree
  • with step by step instructions

In addition to all the above, the Soko Kit is fantastic for all users of Self-Level or Bail-Out gyros like the Skookum SK720, MSH Brain, HeliCommand HC3sX, Ikon, etc. This is because the Soko Kit is the only tool that allows a precise recalibration of the accelerometers with a mounted gyro/flybarless-unit. It eliminates all assembling and manufacturing tolerances during the recalibration process.

SoKo Kit Digital Helicopter setup tool

As there are countless combinations of helicopters and gyros we are sure that due to the versatility of the Soko Kit, you might even find additional useful applications for your brand of helicopter or gyro/fbl-unit.

SoKo Kit - Digital Helicopter setup tool

Includes:

  • 1x Soko Gauge
  • 2x AAA batteries
  • 1x Soko Helical
  • 1x Zipper bag
  • 2x M3x6mm hex screws
