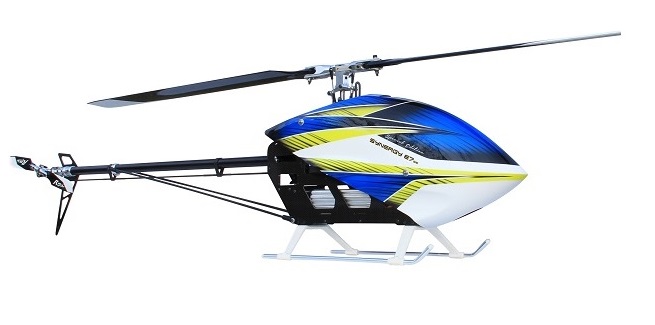

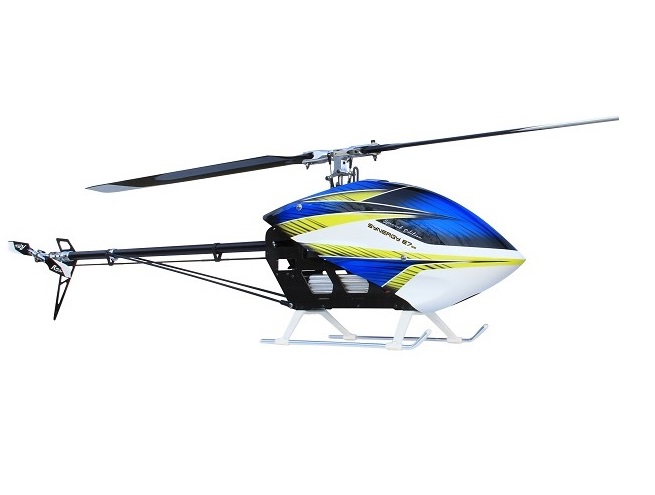

Synergy E7 Special Edition Torque Tube kit
This is the Synergy E7 Special Edition Flybarless Torque Tube Electric Helicopter Kit. Designed and tested by pro pilot and Synergy CEO Matt Botos, the E7 Special Edition features a number of improvements and updates over the original; updated 121 tooth high efficiency main drive gear, low profile head block designed specifically for extreme 3D flight and an adjustable tail gear ratio just to name a few. As standard, the E7 features an ultra light and rigid carbon fiber main frame, third bearing block support for the main shaft and support for many LiPo battery sizes. Also included in the package is a high detail painted canopy and 12 tooth pinion gear.
Features:
- Low profile head block for ultra fast 3D and sleek new look
- Swash phasing arms mount directly to the head block
- Updated 121T main gear optimized high efficiency ratio 10.08:1
- Adjustable tail gear ratio from 4.5:1 – 4.9:1
- Aluminum tail pitch slider assembly for high precision tail control
- Aluminum motor mount side plates aid motor cooling
- Easy to install metal tail push rod ends
- Precision machined helical main gear
- Third bearing block support for main shaft
- Bearing block support for motor pinion
- Multiple battery configuration options 6S-12S
- Extremely light and ultra rigid carbon fiber frame design
- Motor mount designed for 30mm mount spacing
- 62mm inner frame width for multiple motor options
- Accepts rotor blades 696-716mm
- Accepts tail blades 106-116mm
- Carbon servo arms provide precision feel in flight
- 12T Pinion included (13T-15T optional)
- Fully adjustable main gear to pinion mesh
- Popular key chain canopy mounting system included
- High detail painted canopy included
