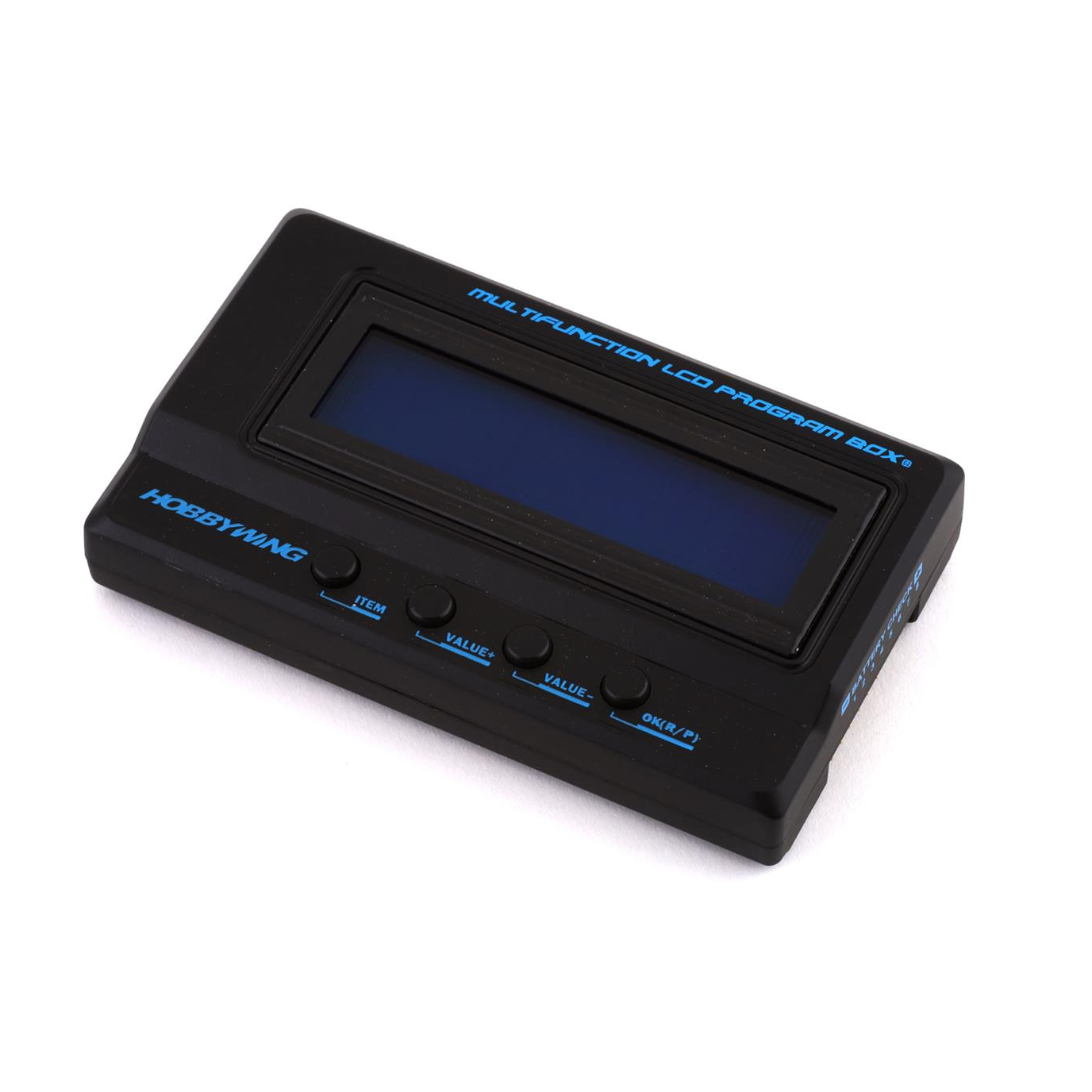

Multifunction LCD Professional Program Box

$39.90 Inc GST

or 4 fortnightly payments of $9.98 with Afterpay More info

In stock

SKU: 30502000 Category:

Description

Multifunction LCD Professional Program Box

  • 2X MORE Memory
  • SMART ESC Programmer
  • LiPo Battery Voltmeter
  • USB Adapter for PC connection

**Firmware is now compatible with all speed controllers!

1 Working Modes:

1.1 Works as an individual device to set the ESC. The value of each parameter is displayed on the LCD screen.
1.2 Works as a USB adapter by linking the ESC to a PC to update the firmware in the ESC or set the ESC by using HOBBYWING USB LINK SOFTWARE .
1.3 Works as a LiPo battery voltmeter to measure the voltage of the whole battery pack or each cell.
1.4 Uses a MCU (microprocessor) with larger memory.

2 Specifications:

2.1 Size: 90mm (L) * 51mm (W) * 17mm (H)
2.2 Weight: 65g
2.3 Input Voltage: 4.5-12.6V (If the ESC does not have a built-in BEC, you must use an additional battery pack to supply the program box)
2.4 Displayer: 16*2 character LCD.
2.5 Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)

3  Programmable Items:

This program card is suitable for the following ESCs:
          1. PLATINUM Series Helicopter/Aircraft ESC
          2. XERUN Series Car ESC (Version 3.0 and above)
          3. EZRUN Series Car ESC (Version 2.0)



A)  The programmable items for the CAR ESC are:
3.1    Running Mode
3.2    Drag Brake Force
3.3    Low Voltage Cut-Off Threshold
3.4    Start Mode
3.5    Maximum Brake Force
3.6    Maximum Reverse Force
3.7    Initial Brake Force
3.8    Throttle Neutral Range
3.9    Timing
3.10  Over-Heating Protection
3.11   Motor Rotation
3.12   LiPo Cells

B)  The programmable items for the AIRCRAFT AND HELICOPTER ESCs are:
3.1    Brake Setting
3.2    Battery Type
3.3    Low Voltage Protection Mode (Cutoff Mode)
3.4    Low Voltage Protection Threshold (Cutoff Threshold)
3.5    Start Mode
3.6    Timing
3.7    Governor Mode
3.8    Motor Type
3.9    PWM Frequency
3.10  Built-In BEC Output
3.11  Motor Load
3.12  LiPo Cells

4  Application Software for the Advanced Professional LCD Program Box:

PC_App_large

Please click the following hyperlink to download the Application Software:
>> Download

PBox_large

PBox1_largePBox2_large
