BK Micro Size Cyclic Servo Model 3001HV

$89.90 Inc GST

In stock

SKU: BKMI01 Categories: ,

Description

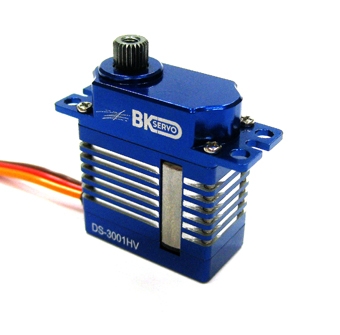

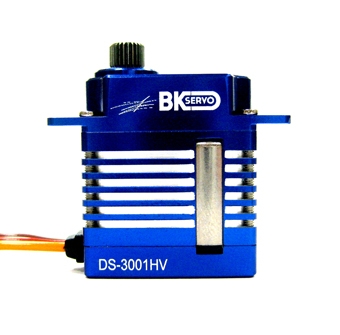

BK Micro Size Cyclic Servo

This high end micro servo offers incredible torque combined with high speed, it is also 100% high voltage compatible and extremely precise. Ideal for 450 class machines, such as Goblin 380, T-Rex 450, GAUI X2, GAUI X3, Mini Protos, KDS Chase and many others.

Features

  • High Voltage
  • High Torque
  • High Speed
  • Excellent Centering
  • Unique CNC design
  • Compatible with Futaba type horns/arms
  • Light Weight

Specifications

  • Operation Voltage: 6 – 8V
  • Weight: 20g (0.71oz)
  • Dimensions: 12mm x 23mm x 27 mm
  • Frequency: 1520us/333hz
  • Gear Type: Metal
  • Motor Type: Coreless

Speed

  • 0.09 sec/60 @5V
  • 0.07 sec/60 @6V
  • 0.06 sec/60 @7.4V

Torque

  • 3.68 kg/cm (51.1 oz/in) @5V
  • 4.7 kg/cm (65.3 oz/in) @6V
  • 5.8 kg/cm (80.5 oz/in) @7.4V

BKMI01_1
