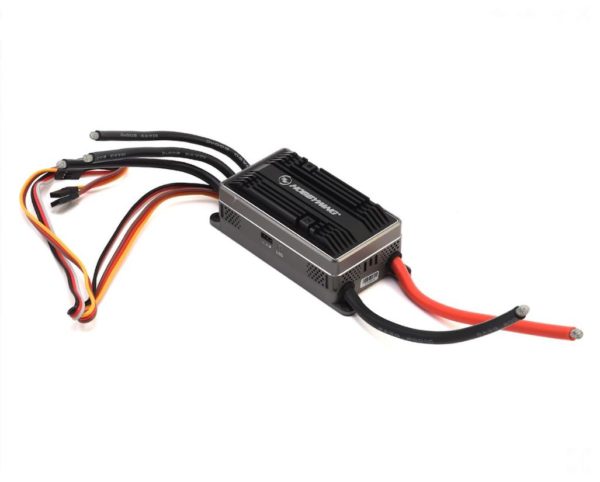

HobbyWing Platinum PRO V4.1 200A HV ESC – OPTO

$609.90 Inc GST

or 4 fortnightly payments of $152.48 with Afterpay More info

In stock

SKU: HW30209102 Category:

Description

Hobbywing Platinum Pro V4.1 200A HV ESC OPTO (6s-14s), for use with 700-800 sized Helicopters.

**Special – free shipping**

One of a Kind Design
The elegant case is made from aluminum alloy material. Each cooling slot and its fin were carefully designed and arranged, and the case has gone through oxidation, coloring and edge-highlighting.

Innovative Heat Dissipation Structure
The innovative “duo” stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case.

Excellent Motor Speed Governing
The high performance 32-bit processor, combined with advanced algorithm, makes the motor speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for the helicopter.

Super Soft Start-Up
The Platinum-HV-200A makes the motor start extremely soft while avoiding tail-drift issues. The start-up time is adjustable from 8 to 25 seconds. This will definitely create a perfect starting point for every flight.



Great Current Endurance
A high-quality and high-voltage MOSFET with a superb current endurance guarantees the ESC’s safety especially during high power and demanding situations.

Built-in Sparkproof Circuit
Built-in sparkproof circuit effectively eliminates sparks produced at the “powering-on” moment and prolongs the connectors lifespan.

Specifications:

Main Applications: 700-800 Class Helis
Governor:
Internal
Built-in BEC:
No
Continuous Current:
200A
Cell Count:
6-14S
Case: Aluminum Alloy Shell
Programming: LCD Program Box via Separate Program Port, WiFi Module or Android / IOS smartphone
Peak Current:
300A
Weight:
325g
Dimensions:
106mm x 50mm x 34mm
DEO Technology: Yes
Spark-Proof:
Yes
