Protos 770x Evoluzione – Red

Description

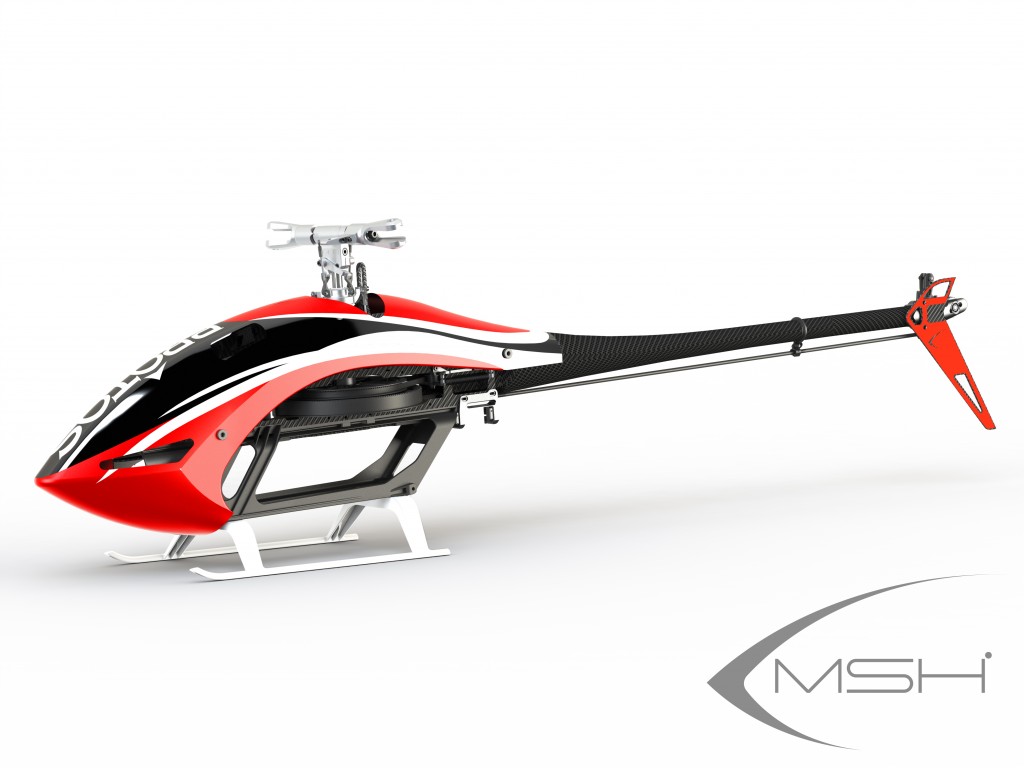

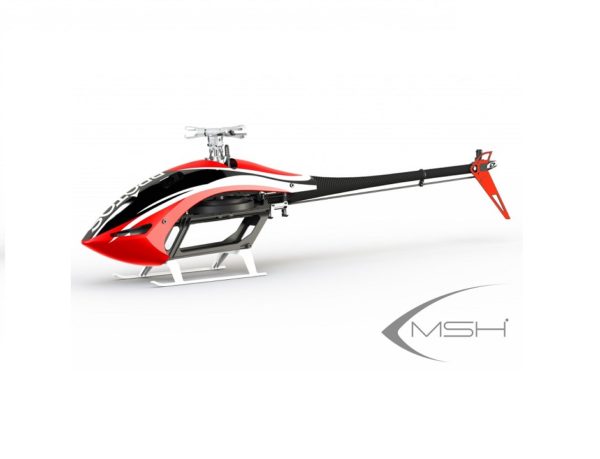

Introducing the Protos 770x Evoluzione. The latest in RC Heli technology from MSH.

Note – This Kit is mechanics only. No FBL or Blades are included. Also available in 700 and 800 versions.

The Protos 770X Evoluzione leverages the industries most robust and technologically advanced platform, adding an updated reduced part and weight tail box.  The new tail box features an ultra wide tail pulley with no flanges allowing the belt to move freely with reduced drag.

The end result is an unmatched experience in light weight performance yet incredible strength. The Protos 770X Evoluzione is ready to elevate your hobby to new heights of performance and fun.

• 700X tail box, reducing part count and weight with ultrawide tail pulley with no side flanges
• Lightweight Leggero bottom frame
• Lightweight “Gorilla” landing gear included.  Gorilla gear take abuse, and are nearly indestructible
• Lightweight battery tray
• Lightweight main gear
• Lightweight front tail pulley
• Main shaft modified for reduced weight
• Lightweight aluminum motor pulley
• Industry leading magnetic canopy mounts
• Innovative gear-less  twin belt design. Ultra robust.  Ultra quiet. Ultra efficient.
• Tail belt auto tensioner using a full spring implementation for extreme durability and consistency.
• Large rear tail pulley to dramatically improve tail authority and belt life
• Compact all metal head design with integrated pitch reference.  Capable of handling extreme loads in an 700/770/800 configuration.
• Ultimate tail holding power and ease of tuning with a 4.8 ratio and mechanics to handle 115mm tail blades at high RPM
• Matching tail fin sticker included

Recommended lightweight 700 competition ready configuration:

• Motor: Xnova 4525-530 (use included 20T aluminum pinion)
• ESC: Scorpion Tribunus 200A ESC or Hobbywing 160A ESC
• Servos: BK Full size servos or Xpert Full size servos
• Batteries: GensAce 12s5000 45C
• Blades: 693mm to 770mm
• Tail blades: 115mm

The Evoluzione canopy utilizes the powerful quick mount canopy magnets, while also integrating 2 more hidden magnets and alignment pins to perfectly match up the rear of the canopy on every flight.  The canopy maintains easy installation with the blind mate canopy magnet system. The streamlined styling improves visibility and enhances the aerodynamics of the model in forward and backwards flight.

The Evoluzione boom is a ground breaking design that sets new limits on what’s possible.  Light, strong, and completely unique in design, functional art is the best description for the Evoluzione boom.  The boom does not require boom supports and gives the Evoluzione a very streamlined look.
