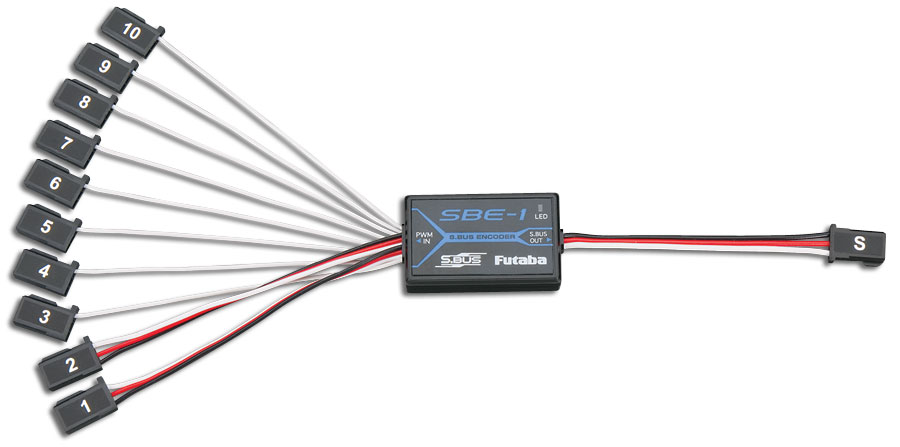

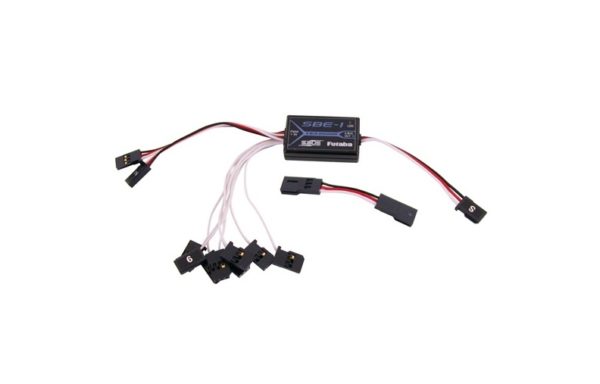

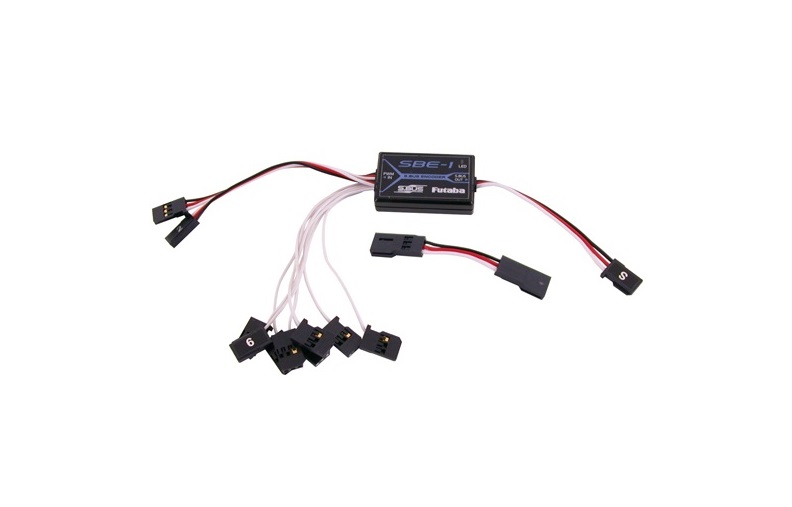

This is the Futaba SBE-1 SBus PWM Adapter.
Makes almost any receiver instantly compatible with SBus programmable servos, as well as the CGY750 and other SBus-capable equipment.
Converts input from up to 10 PWM channels into a single SBus output.
- PWM Input: Max 10 Channels
- Input Pulse Width: 805 – 2,235μS
- Input Frame Rate: 3 – 27.3mS
- Output Signal: S.Bus
- SBus Data Rate: 100kbps
- Output Frame Rate: Approx. 7mS
- Operating Voltage Range (Rated): 4.8 – 7.4V
- Dimensions: 23.5×33.5×9.5mm (excluding cable)
- Weight: 15g
